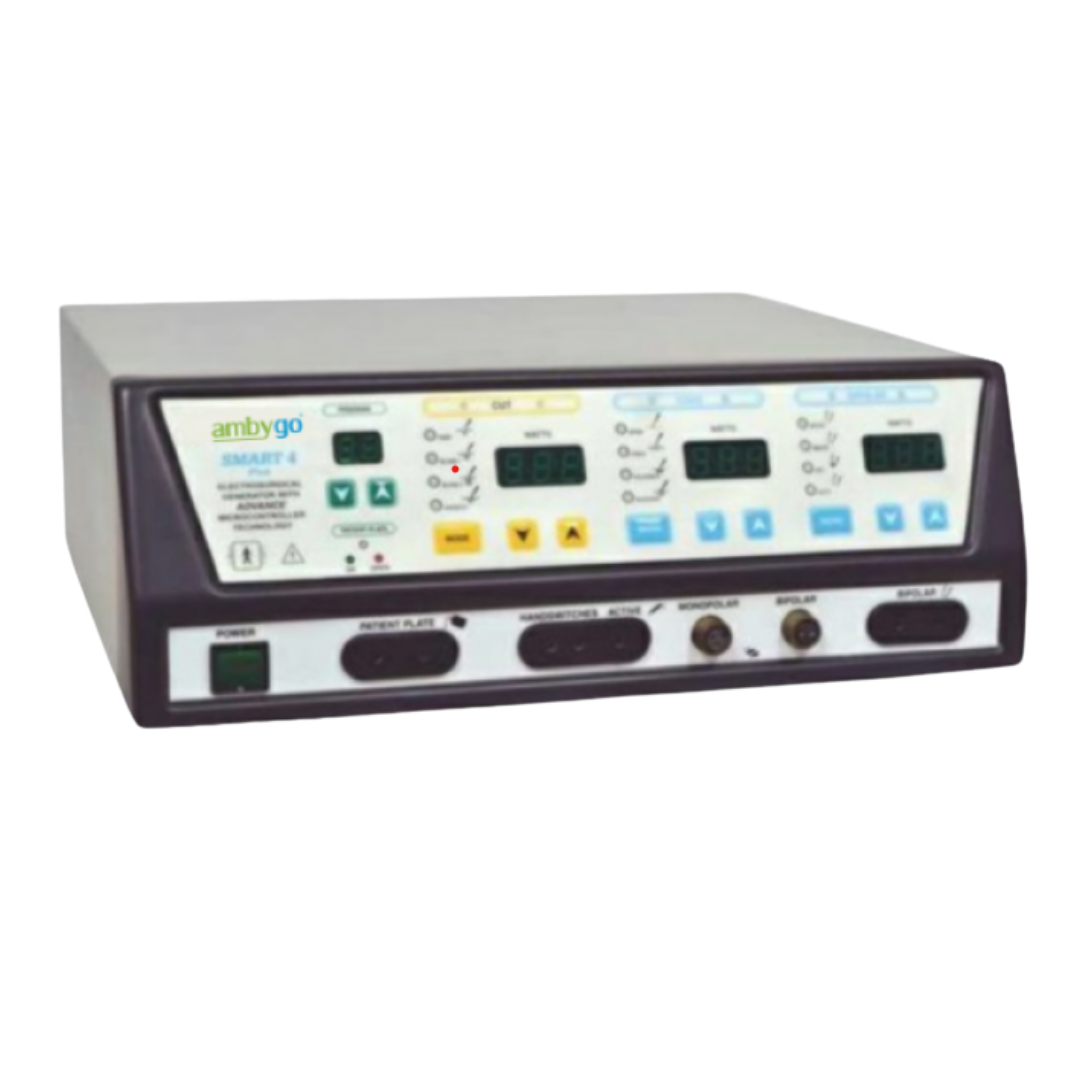

Electro Surgical Unit (SMART 4 Plus)

Ambygo® Electro Surgical Unit Smart 4 Plus is an advanced electrosurgical generator built for high-demand surgical environments. Manufactured by a leading medical equipment manufacturer in Delhi, it offers precise power control, reliable coagulation, and versatility across surgical specialties. As part of Ambygo®’s premium SEO-ranked product line, this ESU reinforces our position as a top brand of India in electro medical technology.

SAFETY FEATURES

• Protection Class According to EN 60601-1
• Body Protected and cardiac protected design

• HF Leakage current <150mA

• Patient Plate Monitoring System

SALIENT FEATURES

• 99 user settable program mode

• Frequency: 480 khz

• Display: 7 segment LED

• Net Weight (Inc Accessories): 8.5 Kg

• Dimensions (L x W x H): 410 mm x 355 mm x 155 mm

• Input Supply Voltage: 110V/230VAC (+/-15%) 50 Hz

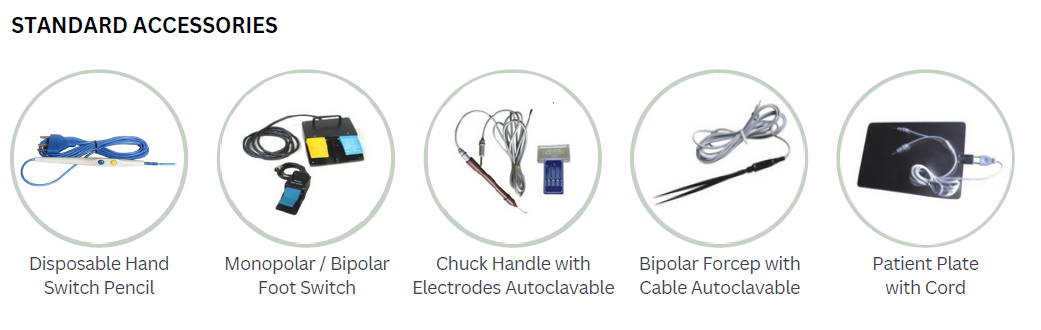

• Separates Monopolar and Bipolar foot switches

PRODUCT FEATURES

CUT MODE

PURE -A high-frequency alternating current yields smooth, rapid cuts that evoke little to homeostasis.

BLEND 1 -Preset blended cut modes give the surgeon varying degrees of hemostasis in cut mode.

BLEND 2 -The mode is used for the vaporization of prostatic tissue or any fat tissue. The higher output wattage gives fast cutting effect of the tissue.

ENDOCUT -The mode is used to automatically control cut system to reduce the complication rate of endoscopic sphincterotomy (EST) and serum hyperamylasemia after EST compared to conventional blend cut mode.

COAG MODE

SPRAY -Spray output is made for direct coagulation at the tissue with spark. This spark does not give any cutting effect as its crest factor is high.

FORCE -This mode is a greater degree of homeostasis and covers all demands of standard coagulation. This produces the fine tune waveform that creates superficial resistance in the tissue resulting in superior coagulation where the tissue destroyed by hyper evaporation.

FULGURATE -Sparking the tissue to lead to coagulation. There is no tissue-electrode contact; rather, voltage is raised in order to incite a spark between electrodes in order to coagulate the tissue in between.

DESICCATE -
Coagulation in which the active electrode is in direct contact with the tissue is referred to as desiccation and is the type of coagulation used in most surgeries. It ensures pinpoint desiccation with less destruction of peripheral tissue.

BIPOLAR MODE

MICRO -High voltage force coagulation for special purpose when speed is required.

MACRO -For highly precise control over coagulation process and probations of carbonization.

CUT -This Bipolar Cut technology nearly eliminate excessive current, even during precision cutting in minute tissue structure.

AUTO- Coagulation start by pressing the foot switch and stops output and audio signal automatically when the tissue is coagulated.

TECHNICAL SPECIFICATIONS

CUT

COAG

BIPOLAR / SEAL / SALINE TURP
