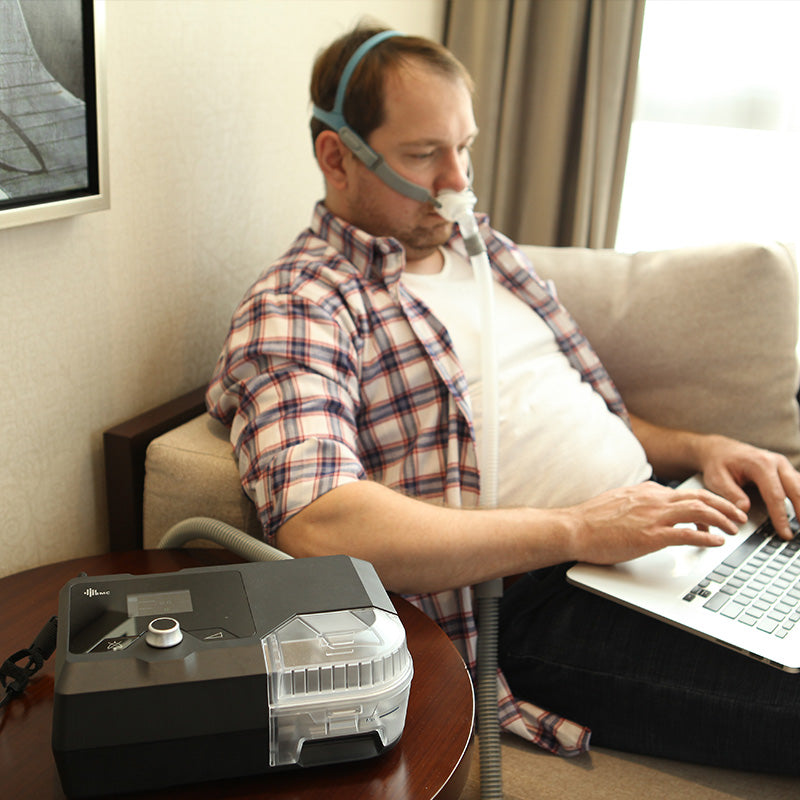

RESmart Auto CPAP System

The RESmart G2S A20 is an auto-adjusting pressure CPAP
(Continuous Positive Airway Pressure) device with integrated
humidifier, designed for the treatment of adult Obstructive Sleep
Apnea (OSA), either in the hospital or at home. With its affable
appearance, stable performance, excellent comfort features, let
you and your family say goodbye to snoring trouble and enjoy the
whole night's sleep.

Affable appearance & Easy operation

• Designed with integrated humidifier, RESmart G2S is smaller,
  lighter and more affable.
• 2.4-inch color screen with user friendly interface.
• 3-button control panel, simple and easy to use.
• The water chamber with drawing structure and opening cover,
  is more convenient to fill water and clean.

Stable performance

• With optimized noise reduction design, the noise level is as low
  as 28 dB, no matter static or dynamic noise, it is controlled to
  be the low-frequency noise which is imperceptible to human
  being, makes you feel it quieter.
• Automatic leakage and altitude compensation ensure the
  therapy accuracy anywhere.

Excellent comfort features

• Newly designed integrated humidifier has large heating plate (>
  50 cm2), which ensures excellent humidifying capacity and
  improves comfort.
• Reslex exhalation pressure release feature let you fall asleep
  at a lower pressure easily.
• Auto on/off feature
• 15 mm tubing supported

Powerful data transfer/retrieval solution

• SD Card
• GPRS Kit
• Wi-Fi Kit
• iCode / iCode QR / iCode QR+

Various way of Sleep Report review

• Quick Report through Device Screen
• BMCares App
• BMCares Cloud Platform
• iCode web version (www.bmc-icode.com)
• RESmart nPAP Data Analysis Software (PC software)
• RESmart Software web version
  (www.icodeconnect.com/quick/info)

Complete optional accessories

RESmart G2S adopts a series of complete accessories to meet
different usage scenarios and needs:

• SpO2 Kit
• GPRS / Wi-Fi Kit
• Power Bank (D1402)
• Heated Tubing

Specifications

Device Size
Dimensions: 274 mm × 184 mm × 115 mm
Weight: 1.9 kg
Water capacity: To maximum fill line 360 mL

Product Use, Transport and Storage

Heated Humidifier
Humidifier Settings: off, 1 to 5 (95℉to 154.4℉ / 35℃ to 68℃)
Humidifier Output: No less than 10 mg H2O/L
Environmental Conditions: Maximum airflow, 35℃, 15% relative
humidity

Mode of Operation
Continuous
Work Mode
Auto CPAP, CPAP
SD Card
The SD card can record patient data and fault information
AC Power Consumption
100 - 240 V AC, 50/60 Hz, 2.0 A
Type of Protection Against Electric Shock
Class II Equipment
Degree of Protection Against Electric Shock
Type BF Applied Part
Degree of Protection Against Ingress of Water
IP22
Pressure Range
4 to 20 hPa (in 0.5 hPa increments), ≤30 hPa under single
fault conditions.
Static Pressure Stability
± 0.5 hPa
Ramp
The ramp time ranges from 0 to 60 minutes.
Sound Pressure Level
< 28 dB, when the device is working at the pressure of 10 hPa
Sound Power Level
< 38 dB, when the device is working at the pressure of 10 hPa

Maximum Flow

Automatic leak compensation
The pressure error ≤ ± 1 hPa when the air leakage is no
more than 70 L/min.
Pressure
Range: 0 to 20 hPa
Margin of Error: ± (0.4 hPa + 4%)
SpO2
Range: 35% to 100%
The margin of error for SpO2 between 70% and 100% is ± 3%.
No strict accuracy requirements for SpO2 below 70%.
Pulse Rate
Range: 30 to 240 BPM
Margin of Error: ±2%
Wavelengths
Red: 663 nanometers
Infrared: 890 nanometers
Maximal Optical Output Power
Less than 1.5 mw maximum average.
Tube
Length: 6 ft. (1.83 m)
Maximum Delivered Gas Temperature
≤ 43℃
The Form and the Dimensions of the Patient
Connection Port
The 22 mm conical air outlet complies with ISO 5356-1.
