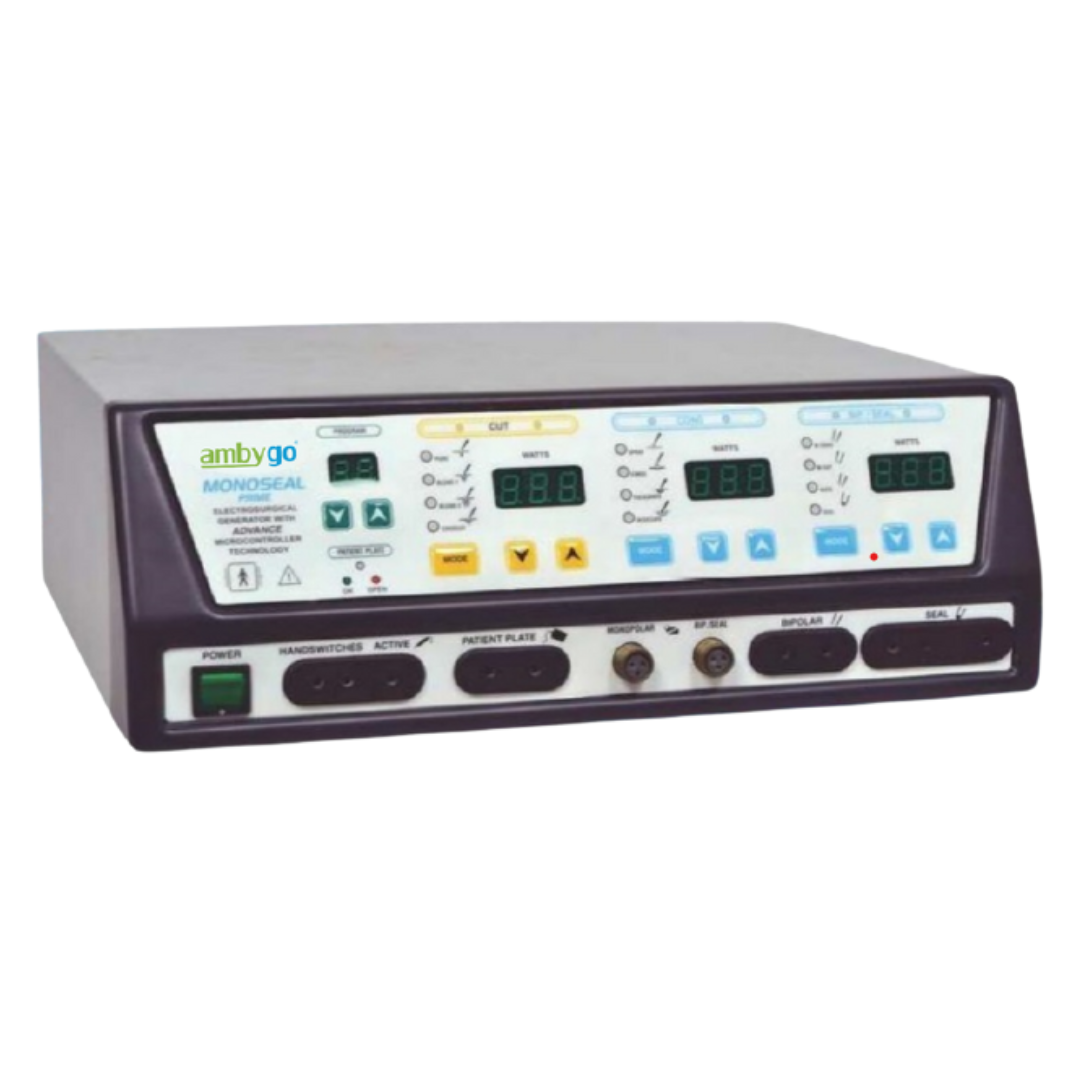

Vessel Sealing System (Monoseal Prime)

The Ambygo® Vessel Sealing System MonoSeal Prime is engineered for precise monopolar vessel sealing in advanced surgical procedures. Developed by a trusted medical equipment manufacturer in Delhi, it delivers controlled energy output for secure sealing and reduced tissue trauma. Hospitals and surgical centers rely on Ambygo® as a dependable medical equipment supplier for next- generation vessel sealing technologies.

• Monoseal Prime Vessel Sealing System
• 7 Segment LED Display
• Equipped with patient plate alarm system and protection from current leakage
• Sealing with no sticking and charring
• Body and cardiac protected design
• Vessel fusion with permanent fuses
• Does not rely on proximal thrombus
• HF leakage current >150mA
• Feedback controlled response system.
• Automatically stops energy delivery as soon as the seal cycle is complete.

SAFETY FEATURES

• Protection Class According to EN 60601-1

• Body Protected and cardiac protected design

• HF Leakage current <150mA

• Patient Plate Monitoring System

SALIENT FEATURES

• 99 user settable program mode

• Frequency: 480khz (Monopolar)

• Frequency: 1Mhz (Seal Mode)

• Display: 7 segment LED

• Net Weight: 7.5 Kg (Approx)

• Dimensions (L x W x H): 440mm x 355mm x 155mm

• Input Supply Voltage: 110V/230VAC (+/-15%) 50Hz

• Separates Monopolar and Bipolar / Seal footswitches

PRODUCT FEATURES:

CUT MODE

PURE -A high-frequency alternating current yields smooth, rapid cuts that evoke little to no hemostasis.

BLEND 1 - Preset blended cut modes give the surgeon varying degrees of hemostasis in cut mode.

BLEND 2 -The mode is used for the vaporization of prostatic tissue or any fat tissue. The higher output wattage gives fast cutting effect of the tissue.

ENDOCUT -The mode is used to automatically control cut system to reduce the complication rate of endoscopic sphincterotomy (EST) and serum hyperamylasemia after EST compared to conventional blend cut mode.

COAG MODE

SPRAY -Spray output is made for direct coagulation at the tissue with spark. This spark does not give any cutting effect as its crest factor is high.

FORCE -This mode is a greater degree of homeostasis and covers all demands of standard coagulation. This produces the fine tune waveform that creates superficial resistance in the tissue resulting in superior coagulation where the tissue destroyed by hyper evaporation.

FULGURATE -Sparking the tissue to lead to coagulation. There is no tissue-electrode contact; rather, voltage is raised in order to incite a spark between electrodes in order to coagulate the tissue in between.

DESICCATE -Coagulation in which the active electrode is in direct contact with the tissue is referred to as desiccation and is the type of coagulation used in most surgeries. It ensures pinpoint desiccation with less destruction of peripheral tissue.

BIPOLAR MODE

BI-COAG -For highly precise control over coagulation process and probations of carbonization.

BI-CUT -Bipolar Cut technology nearly eliminate excessive current, even during precision cutting in minute tissue structure.

AUTO - Coagulation start by pressing the foot switch and stops output and audio signal automatically when the tissue is coagulated.

SEAL -This mode provides unique combination of pressure and energy to create vessel fusion, leaving no foreign material behind. Ambygo designed special feature that seal as well as cut simultaneously used with the help of sealer instrument using programmer 5 & 6 for surgery.

TECHNICAL SPECIFICATIONS

CUT

COAG

BIPOLAR
