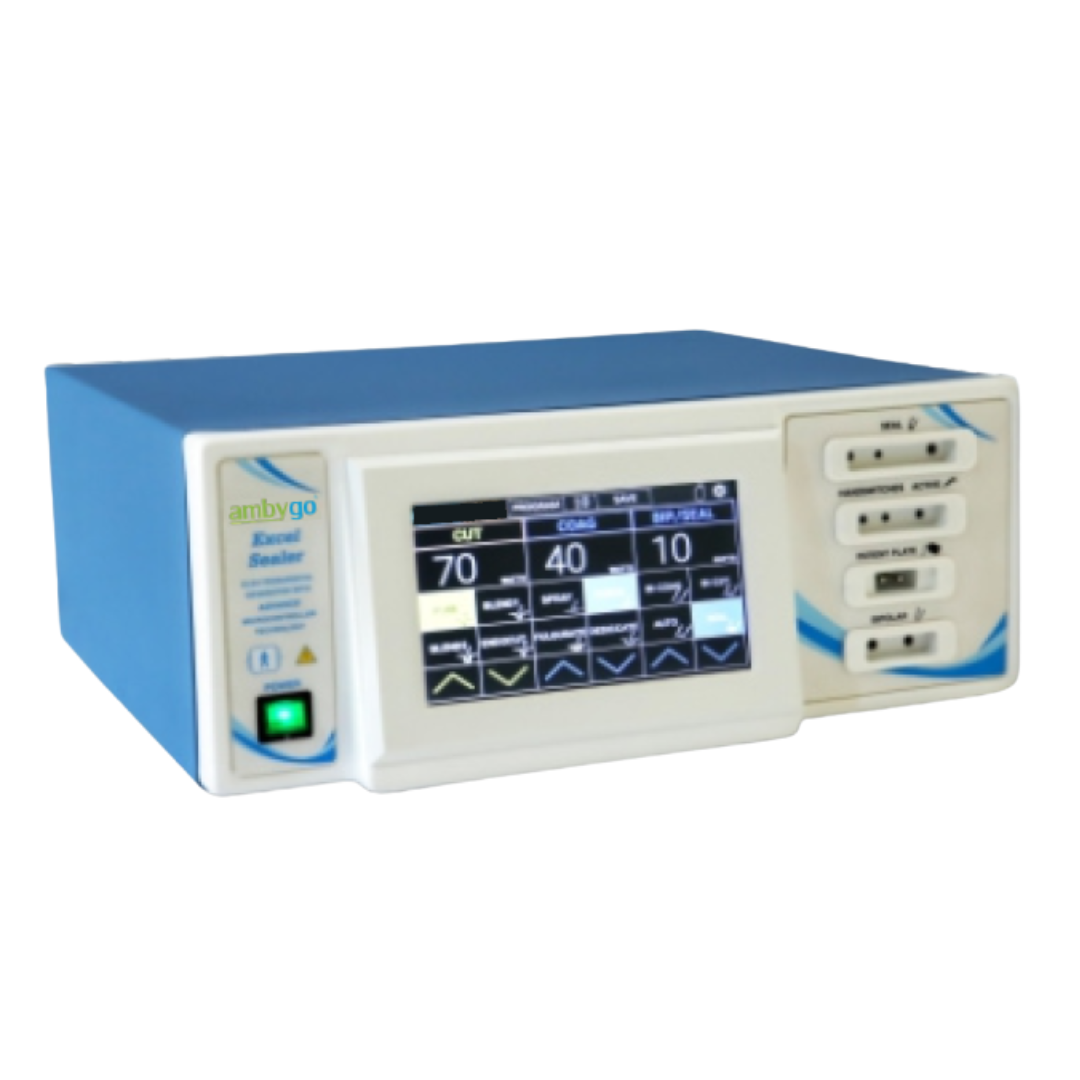

EXCEL SEALER

Electrosurgical vessel sealing is a specialize system developed by Ambygo for minimal access and open surgery. This technology can facilitate a range of minimal access surgical procedures, helping to meet government objectives of reduced length of stay for patients in hospital. Each of these devices comprises an electrosurgical unit (ESU) with a high power and low voltage bipolar mode and specialist instruments that combine tissue compression with tissue heating to produce haemostasias in arteries, veins or a bundle of tissue.
This is a technology which is different from conventional diathermy and provides a unique
combination of pressure and energy to create vessel fusion and permanently fuses vessels up to and including 7 mm in diameter and tissue bundles, without dissection or isolation. An optimized combination of pressure and energy creates the seal by melting the collagen and elastin in the vessel walls and reforming it into a permanent, plastic-like seal and results in virtually no sticking or charring. It does not rely on a proximal thrombus.
Feedback-controlled response system automatically discontinues energy delivery when the seal cycle is complete, eliminating the guesswork.

SAFETY FEATURES

• Protection Class According to EN 60601-1

• Body Protected and cardiac protected design

• HF Leakage current <150mA

• Patient Plate Monitoring System

SALIENT FEATURES

• 99 program modes: User settable program mode

• Frequency: 480 khz (Monopolar)

• Frequency: 1 Mhz (Seal Mode)

• Display: 7 in LCD Touchscreen display

• Weight: 7.5 Kg. (Approx)

• Dimension (L x W x H): 440mm x 355mm x 155mm

• Input Supply Voltage: 110V/230 VAC (+/-15%) 50 Khz

• Separates Monopolar & Bipolar / Seal foot switches

PRODUCT FEATURES

CUT MODE

PURE -A high-frequency alternating current yields smooth,
rapid cuts that evoke little to no hemostasis.

BLEND 1 -Preset blended cut modes give the surgeon varying degrees of hemostasis in cut mode.
BLEND 2 -The mode is used for the vaporization of prostatic tissue or any fat tissue. The higher output wattage gives fast cutting e ect of the tissue.

ENDOCUT -The mode is used to automatically control cut system to reduce the complication rate of endoscopic sphincterotomy (EST) and serum hyperamylasemia after EST compared to the conventional blended cut mode.

COAG MODE

SPRAY -Spray output is made for direct coagulation at the
tissue with spark. This spark does not give any cutting effect as its crest factor is high.

FORCE -This mode is a greater degree of homeostasis and covers all demands of standard coagulation. This produces the fine tune waveform that creates superficial resistance in the tissue resulting in superior coagulation where the tissue destroyed by hyper evaporation.

FULGURATE -Sparking the tissue to lead to coagulation. There is no tissue-electrode contact; rather, voltage is raised in order to incite a spark between electrodes in order to coagulate the tissue in between.

DESICCATE -Coagulation in which the active electrode is in direct contact with the tissue is referred to as desiccation and is the type of coagulation used in most surgeries. It ensures pinpoint desiccation with less destruction of peripheral tissue.

BIPOLAR MODE

BI-COAG -for highly precise control over coagulation process and privations of carbonization.
BI-CUT -Bipolar CUT technology lets you nearly eliminate excessive current, even during precision cutting in minute tissue structure.
AUTO -coagulation start by pressing the foot switch and stops output and audio signal automatically when the tissue is coagulated.

SEAL -This mode provides unique combination of pressure & energy to create vessel fusion, leaving no foreign material behind. Ease med designed special feature that seal as well as cut simultaneously used with help of sealer instrument using programmed 5 & 6 for surgery.

TECHNICAL SPECIFICATIONS

CUT

COAG

BIPOLAR / SEAL / SALINE TURP
