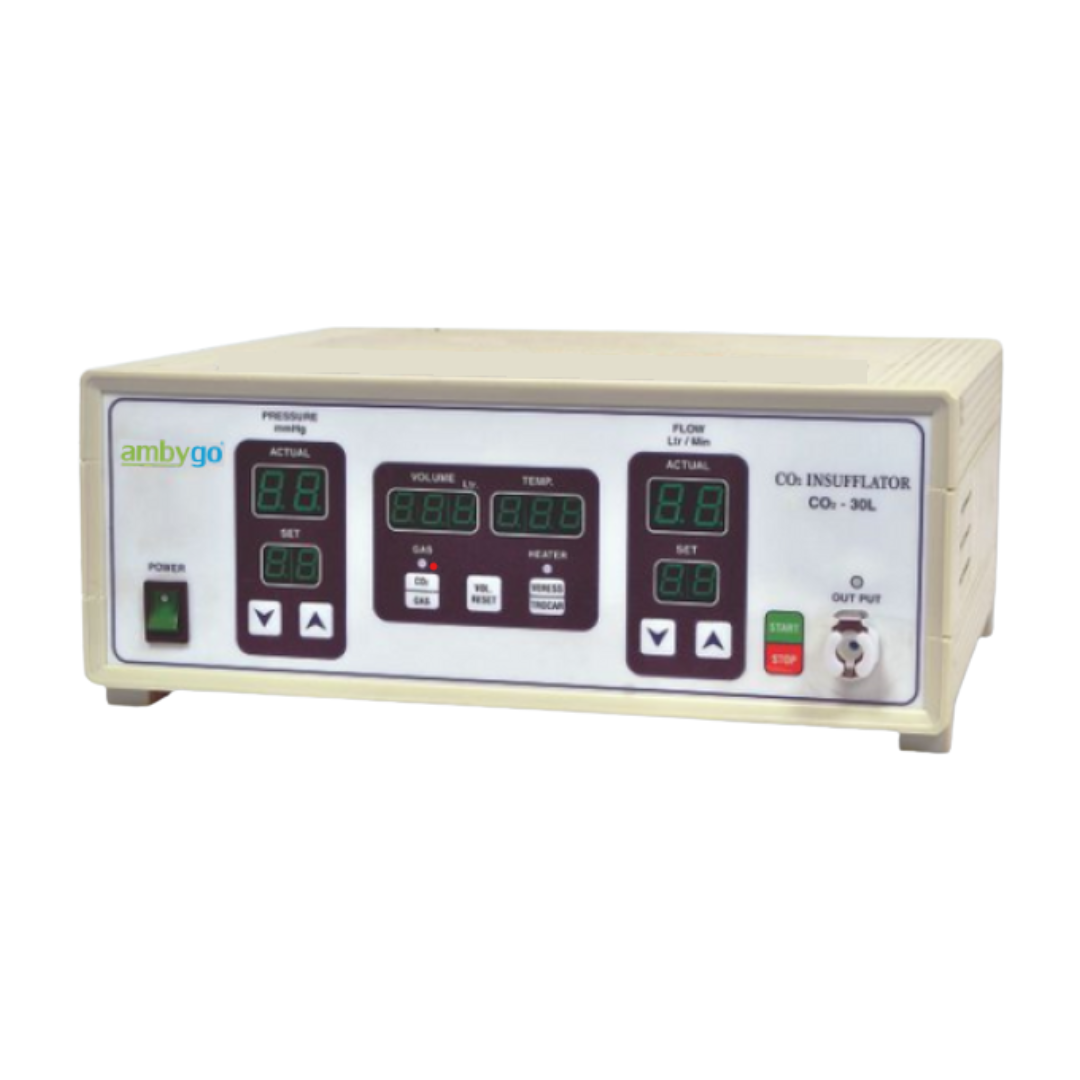

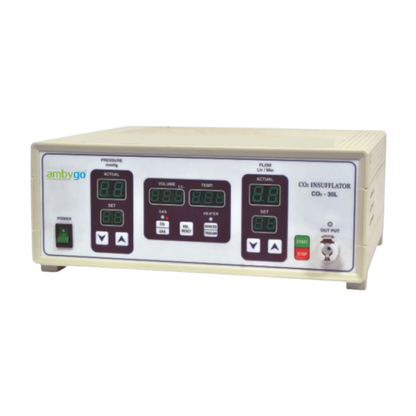

CO₂ Insufflator (30L)

Ambygo microprocessor controlled laparoscopic Co₂ insufflator is ideal to meet all the requirements of modern laparoscopic surgery. Stable pressure balance in the abdomen is guaranteed by high gas flow performance & low insufflation pressure.

*Also available in 40L & 50L

SALIENT FEATURES

• Functional and user-friendly design

• Compact and light weight

• Various safety features and meets quality standards

• Rapid delivery of gas and provide immediate response for all procedures

• Advance high speed micro controller technology allows greater accuracy and measurement of Co₂

• Trocar and Varies modes

• Over pressure alarm and pressure release shysters help assure patient safety

• Separate digital display for actual value and set value of pressure and flow rate

• Display for actual gas consumption and temperature

PERFORMANCE FEATURES

SOFTWARE

•
  Software controlled technology to initiate calibration of pressure and flow of system when insufflator is turn on

• Software controlled pressure release mechanism to prevents excess pressure build up in abdomen

INBUILT GAS WARMER

• Ambygo Co₂ insufflator has unique heating systems that provides a constant temperature for the Co₂ to reduce chill effect of high flow insufflation & lenses telescope fogging

ADVANCE FLOW CONTROL

• Ambygo Co₂ insufflator is highly adaptable advance flow control insufflation for precise and safe gas flow to meet patient requirement
• Better precision for measurement of volume & flow of Co₂

• Ambygo Co₂ has pressure range from 4 to 30 mm Hg

SAFETY

• Special feature that assures a constant pressure of the Co₂

• If actual pressure is more than set pressure, the system offers a rapid & instantaneous release over pressure preventing any contamination of the insufflator

GAS ERROR INDICATOR

• Systems indicate unavailability of gas by audio & visual alarm



TECHNICAL SPECIFICATIONS

PNEUMATICS

• Gas: C02 supply

• CO2 gas supply systems: UNF 7/16"

• Input pressure Min. to Max.: 2 to 3 BAR

• Insufflation pressure Min. to Max.: 4-30 mm H (to an accuracy of 1 mm Hg)

• Flow rate Min to Max.: 1 to 30 Ltrs/Min

• Internal over pressure release valve

• Output connection - 6 to 7 mm ID tube

INTERFACE

• 7 Segment display showing set & actual pressure, set & actual flow for temperature & Gas consumption

• Keyboard - feather touch

POWER SUPPLIES

• Power supply: 110V/230VAC + 15% @ 50-60 Hz
• Protection by fuse: 5A

• Power consumption: 125W Max with warmer else, 20W Max

MECHANICS

• Enclosure: ABS plastic box

• Dimensions (L x W x H): 260mm x 290mm x 105mm

• Weight: Approx. 2 kg
