BMC BPAP System B30VT

Upgraded humidification, soft breath:

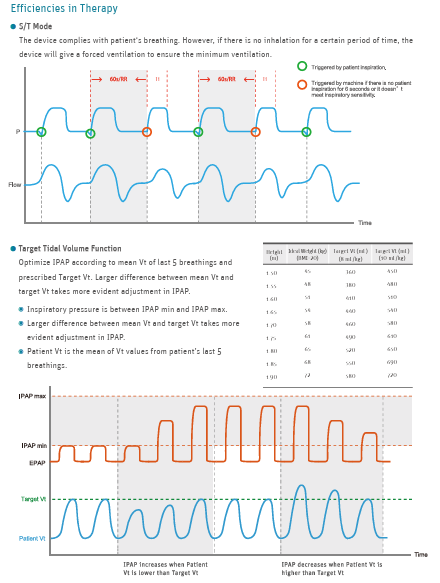

 G2S B30VT is a Bi-level device with S/T mode and target tidal voume feature intended to provide non-invasive ventilation for Obstructive Sleep Apnea and Respiratory Insufficiency patients.

Ultra modern design with a user friendly interface:

•  The water chamber with drawer structure and opening cover, is more convenient to fill water and clean.
• 3.5-inch color screen with user friendly interface.

Intelligent comfort features:

•  Inspiratory / Expiratory sensitivity 8 grades of I Sens and E Sens optimize the compliance of the device with the patient.
• Newly designed integrated humidifier has large heating plate (> 50 cm2), which ensures excellent humidifying capacity and improves comfort.
•  The ramp time ranges from 0 to 60 minutes.

Powerful data transfer/retrieval solution:

Various way of therapy report review

1. Quick Report through Device Screen
2. BMCares App
3. BMCares Cloud Platform
4. iCode web version (www.bmc-icode.com)
5. BMC nPAP Data Analysis Software (PC software)
6.  BMC Software web version (www.icodeconnect.com/quick/info)

Device Size:

 Dimensions: 274 mm × 184 mm × 115 mm

Weight: 1.9 kg

Water capacity: To maximum fill line 360 mL

Heated Humidifier:

Humidifier Settings: Off, 1 to 5 (95°F to 154.4°F / 35°C to 68°C)

Humidifier Output: No less than 10 mg H2O/L

Work Mode: CPAP、S、T、S/T

SD Card:

The SD card can record patient data and fault information

AC Power Consumption:

100 - 240 V AC, 50/60 Hz, 2.0 A

Sound Pressure Level:

< 30 dB, when the device is working at the pressure of 10 hPa

Maximum Flow:

Automatic leak compensation:

Maximum Delivered Gas Temperature: 43°C

Pressure: G2S B30VT:4 to 30 hPa

Static Pressure Stability:

± 0.5 hPa

SpO2:

0% to 100%

Pulse Rate:

40 to 240 BPM
