AWS-1525

Medical Yantra

★★★★★ Excellent 4.8 | 2000+ Reviews

Anaesthesia workstation System – Premium

Anaesthesia workstation System – Premium

Rs. 0.00
Rs. 0.00 Rs. 0.00
Sale Sold out
211 people are currently looking at this

Product Details & Specifications

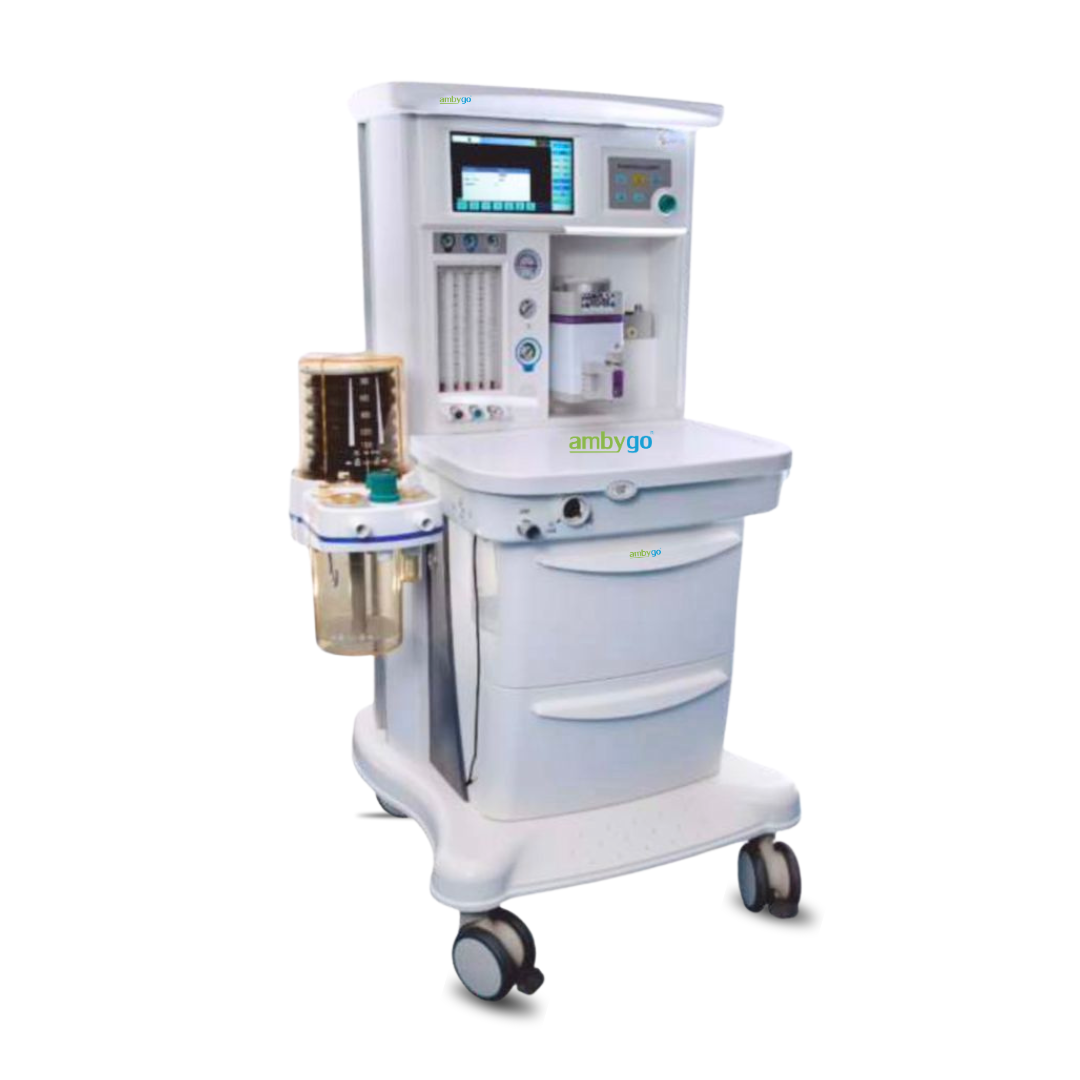

The Ambygo AWS-1525 is a high-precision, pneumatically driven, and electronically controlled anesthesia delivery system designed for both adult and pediatric patients. It features advanced monitoring and real-time loop detection to ensure maximum safety and operational efficiency in clinical environments.
Key Specifications:

  • Application: Adult & Pediatric
  • Drive Mode: Pneumatically driven, electronically controlled
  • Operating Modes: Semi-open, Semi-closed, and Closed system
  • Anesthetic Vaporizer : Selectatec mounting system with dual vaporizer provision
  • Included Vaporizer : One vaporizer included - choice of Isoflurane, Sevoflurane, or Halothane
  • Power Supply: 100-240 V AC, 50/60 Hz
  • Additional Functions: Real-time detection for Pressure, Loops, Respiratory Rate, Tidal Volume, and Compliance

VENTILATOR SPECIFICATIONS

  • Display: 10.1" high-resolution LCD screen
  • Ventilation Modes: VCV, SIMV, AC, BAG, and Standby
  • Tidal Volume: 20- 1500 mL
  • Respiratory Rate: 1 - 100 BPM (1-40 BPM under SIMV)
  • I: E Ratio: 4:1-1:8
  • Pressure Range: 5-60 cmH2O
  • PEEP:3-30cmH2O
  • Pressure Limit: 20- 60 mBar
  • Ptrigger Sensitivity: -20 to 0 cmH2O
  • Waveforms Displayed: Pressure-Time, Flowtime, Volume-Time
  • Loops Displayed: Pressure-Volume, Volume-Flow, Flow-Pressure
  • Monitoring Parameters: Tidal Volume, Minute Volume, RR, FiO2, PEEP,
  • Pmax, Pmean, Cdyn
  • Power Input: 110-240 V AC, 50/60 Hz
  • Driving Gas Input: 4 Bar
  • Battery Backup: Up to 180 minutes
  • Sensor Type: Proximal sensor at patient Y-piece
  • Patient Category: Adult & Pediatric
  • Alarm System: High/Low Pressure, RR, Minute Volume, and FiO2 | Low Battery, FiO2 Deviation, Driving Gas Failure

FLOWMETER ASSEMBLY

  • Type: 5-Tube Cascade Flowmeter
  • O2 Flow Range: 0.1-1 L/min (fine), 1-15 L/min (coarse)
  • N2O Flow Range: 0.1-1 L/min (fine), 1-15 L/min (coarse)
  • Air Flow Range: 0.1-15 L/min
  • Safety Mechanisms: O2-N2O Hypoxic Guard System
  • Oxygen Flush Flow: 25-75 L/min

Why Choose Ambygo AWS-1525?
Designed to meet modern ICU and OT requirements, this workstation combines a compact frame with advanced ventilator features and reliable battery backup, making it the perfect choice for high-end medical facilities.
Manufacturer: Mahika Medical Pvt. Ltd.
Origin: Made in India
