Crown

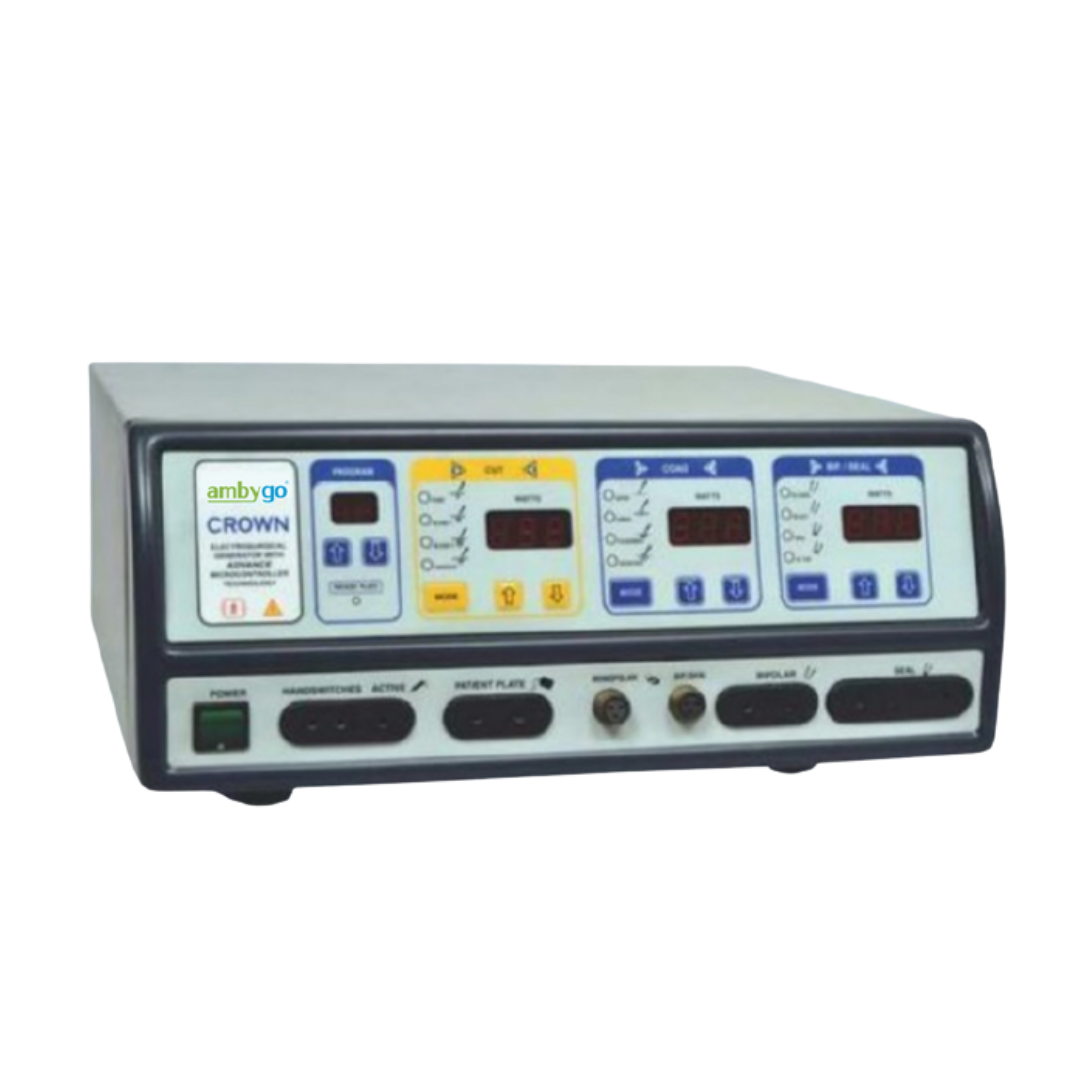

Ambygo innovative model of ESU Crown is design to provide a safe, user-friendly generator to meet all types of surgery procedure performance demands. Ambygo incorporates automatic safety features into the Crown like self-test circuits, audible tones, discreet outputs, isolated circuitry, and patient plate monitoring It has multiple output of monopolar, bipolar, vessel sealing and saline TURP functions and will satisfy a multitude of surgical requirements while staying safe, flexible, convenient, and affordable.

SAFETY FEATURES

• Protection Class According to EN 60601-1

• Body Protected and cardiac protected design

• HF Leakage current <150mA

• Patient Plate Monitoring System

SALIENT FEATURES

• 99 user settable program mode

• Frequency: 480 khz (Monopolar /TURP)

• Frequency: 1Mhz (Seal Mode)

• Display: 7 segment LED

• Input Supply Voltage: 100V/230VAC (+/-15%) 50Hz

PRODUCT FEATURES

CUT MODE

PURE - A high-frequency alternating current yields smooth, rapid cuts that evike little to homeostasis.
BLEND 1 - Preset blended cut modes give the surgeon varying degrees of hemostasis in cut mode.
BLEND 2 - The mode is used for the vaporization of prostatic tissue or any fat tissue. The higher output wattage gives fast cutting effect of the tissue.

ENDOCUT - The mode is used to automatically control cut system to reduce the complication rate
of endoscopic sphincterotomy (EST) and serum hyperamylasemia after EST compared to Conventional blended cut mode.

COAG MODE

SPRAY -Spray output is made for direct coagulation at the tissue with spark. This spark does not give any cutting effect as its crest factor is high.

FORCE -This mode is a greater degree of homeostasis and covers all demands of standard coagulation. This produce the fine tune waveform that creates superficial resistance in the tissue resulting in superior coagulation where the tissue destroyed by hyper evaporation.

FULGURATE -Sparking the tissue to lead to coagulation. There is no tissue-electrode contact;rather, voltage is raised in order to incite a spark between electrodes in order to coagulate the tissue in between.

DESICCATE -Coagulation in which the active electrode is in direct contact with the tissue is referred to as desiccation and is the type of coagulation used in most surgeries. It ensures pinpoint desiccation with less destruction of peripheral tissue.

BIPOLAR & SEAL

BI-COAG - For highly precise control over coagulation process and provations of carbonization.

BI-CUT - Bipolar Cut technology nearly eliminate excessive current, even during precision cutting in minute tissue structure.

SEAL -Mode provides unique combination of pressure & energy to create vessel fussion, leaving no foreign material behind. Easerned designed special feature that seal as well as cut simultaneously used with help of sealer instrument using programme 5 & 6 for surgery.

BITUR- The advantage of bipolar TURP is that saline can be used during the procedure which is much safe option, vertually eliminating the risk of TURP syndrome as a result, larger and more complicated prostate gland can be treated with Bipolar TURP mode.

CUT

COAG

BIPOLAR / SEAL / SALINE TURP
